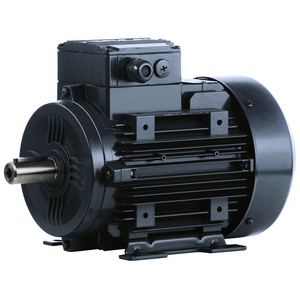

MECALINE 3EL132S6B-PA-BA-C34 MOTOR 3KW 1000RPM B35 132M 400/690V-3PH-5
3 Phase AC Motor
References
mecaline:894744
rubix:264A5670
manufacturer :3KW 1000T 132M B35 IE3
ean:3660338471438
Technical specifications
| Power | 3 kW |
|---|---|
| Voltage | 400/690v-3ph-50Hz V |
| Speed | 1000 rpm |
Product details : MECALINE 3EL132S6B-PA-BA-C34 MOTOR 3KW 1000RPM B35 132M 400/690V-3PH-5
Asynchronous electric motors in aluminum or cast iron. Protection index IP55. Class F insulation (155ºC) / Temperature Rise B. Efficiency levels: ∙ IE2 from 0.12 kW to 0.55 kW. IE3 from 0.55 kW to 55 kW and IE4 from 4 kW to 90 kW. Standard voltage of 400/690v. PTC thermistor fitted as standard on frame sizes 132 & above.
MOTOR 3KW 1000rpm B35 132M 400/690v-3ph-50Hz IE3 ALU IP55
Strengths
Aluminium, RAL7031 paint
Applications
Rotational power
Technical specifications
Attributes
| Power | 3 kW |
|---|---|
| Voltage | 400/690v-3ph-50Hz V |
| Speed | 1000 rpm |
| Material | Aluminium |
| Shaft Height | 132 mm |
| Number of poles | 6 |
| Efficiency class | IE3 |
| Degree of protection (IP) | IP55 |
| Mounting typ | B35 |
| Shaft diameter | 38 mm |
| Weight | 25 kg |
| Colour | Grey |
Show UNSPSC/ECL@SS
£ 439.67 excl. VAT
/ Each
£ 527.60 incl. VAT
Usually arrives within 14 working days
