SMC MDHR3-10R AIR CYLINDER

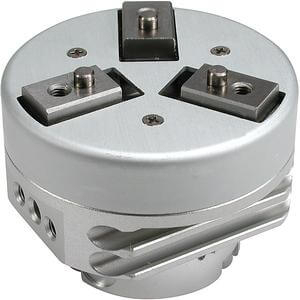

Series MHR3, 3-finger gripper features high precision centering and high repeatability. A double acting rotary actuator and precision ball bearings permit smooth action without vibration. Mounting can be done from 3 directions; axial side, lateral side or vertical side. The MHR3 series is applicable for clean room class 10.

•Rotary actuated air gripper
•Three fingers
•Bore sizes: 10, 15 (mm)
•Auto switch capable

Nominal Size: Ø10
Port Location: R (Body Side Direction)
Auto Switch: No Switch
Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
Number: 2 pcs. (Or None in the Case of No Switch)
