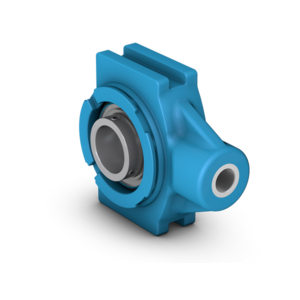

SKF WSTUC30M-TPZM ZINC COATED BEARING INSERT FOR FOODLINE UNIT
Ball Bearing Unit
References
skf:WSTUC 30M-TPZM
rubix:200A1521
ean:07316577847607
Technical specifications
| Inner diameter | 30 mm |
|---|---|
| Length | 117 mm |
| Width | 38.1 mm |
Product details : SKF WSTUC30M-TPZM ZINC COATED BEARING INSERT FOR FOODLINE UNIT
Take-up ball bearing units for the SKF Food Line consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a composite housing. They are strong, yet lightweight, and chemically resistant to detergents and contaminants. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening a set screw on the inner ring, that makes it easy to mount.
Strengths
- Strong, yet lightweight
- Chemically resistant
- Designed for an alternating rotation
- Well suited to follow the highest food safety standards
- Reliable in wet environments
- Chemically resistant
- Designed for an alternating rotation
- Well suited to follow the highest food safety standards
- Reliable in wet environments
Technical specifications
Attributes
| Inner diameter | 30 mm |
|---|---|
| Length | 117 mm |
| Width | 38.1 mm |
| Type | Y-bearing head units |
| Total bearing width | 39 mm |
| Material | Bearing steel |
| Series | BlueRange |
| Basic static load, radial - C0r | 11200 N |
| Basic dynamic load, radial - Cr | 19500 N |
| Outer diameter | 62 mm |
Show UNSPSC/ECL@SS
£ 93.65 excl. VAT
/ Each
£ 112.38 incl. VAT
Usually arrives within 14 working days
