SANDVIK R216.42-02530-HC25G1700 SC MILLING CM PLURA 2 5963305

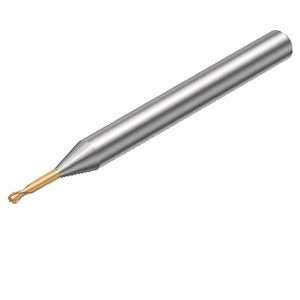

Ball nose end mill CoroMill® Plura solid carbide R216.42-02530-HC25G1700
See technical informationReferences
Sandvik Coromant:R216.42-02530-HC25G1700
Rubix:320A1628
Manufacturer :5963305
Technical specifications
| Diameter | 2.5 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 6 mm |
Product details : SANDVIK R216.42-02530-HC25G1700 SC MILLING CM PLURA 2 5963305
Ball nose end mill CoroMill® Plura solid carbide for micro-milling
Technical specifications
Attributes
| Diameter | 2.5 mm |
|---|---|
| Type of tail | cylindrical |
| Tail diameter | 6 mm |
| Number of teeth | 2 |
| Length of cut | 2 mm |
| Total length | 50 mm |
| Centre cut | no |
| Cutting material | carbide |
| Coating | tialn coating |
| Type | coromill plura solid carbide ball nose end mill (for micromachining) |
| Angle of helix | 30 ° |
| Machining material | hardened steel (43 ≤ hrc ≤ 63); also suitable for multi-material up to hardness ≤ 63 hrc |
| Capacity length | 15 mm |
| Cutting angle | 15 ° |
Show UNSPSC/ECL@SS
£ 149.41 excl. VAT
/ Each
£ 179.29 incl. VAT
- Usually arrives within 14 working days
