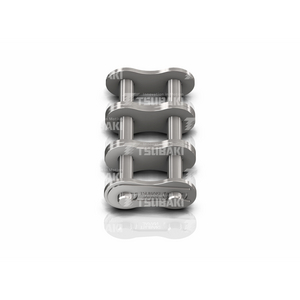

TSUBAKI 0231123002 RS12B-SS-3 BS-SS CONNECTING LINK
BS SS Chain Connecting Link (Spring Clip)
References
tsubaki:RS12B SS 3 CL SC
rubix:267A0143
manufacturer :0231123002
ean:8718472016888
Technical specifications
| Chain | 12B3SSCL |
|---|---|
| Chain pitch | 19.05 mm |
Product details : TSUBAKI 0231123002 RS12B-SS-3 BS-SS CONNECTING LINK
All basic components of Tsubaki SS chain are made of Stainless Steel SUS304 (except the spring clips, which are made of SUS301). This chain can be used in special environments such as underwater, acidic and alkaline applications. It can also be used in high and low temperatures (-20°C to +400°C). SUS304 is only marginally magnetic, which is the result of the cold-forging process.
Technical specifications
Attributes
| Logistic Weight | 61 g |
|---|---|
| Chain | 12B3SSCL |
| Chain pitch | 19.05 mm |
| Weight | 61 g |
| Inner width min. | 11.68 mm |
| Roller diameter | 12.07 mm |
| Plate height | 16.1 mm |
| Plate thickness | 1.8 mm |
| Pin length | 65.6 mm |
| Plate type | Round |
| Chain pin diameter | 5.72 mm |
Show UNSPSC/ECL@SS
£ 25.72 excl. VAT
/ Each
£ 30.86 incl. VAT
Usually arrives within 14 working days
