TSUBAKI 0231080000-M RS08B-SS-1 BS-SS CHAIN CORROSIVE ENVIRONMENTS MTR
BS SS Chain
References
tsubaki:RS08B SS 1 RP (P=1/2'')
rubix:267A4270
manufacturer :0231080000-M
ean:8718472015652
Technical specifications
| Chain pitch | 12.7 mm |
|---|---|
| Profile | Simplex (1) |
| Chain | 08B-1 |
Product details : TSUBAKI 0231080000-M RS08B-SS-1 BS-SS CHAIN CORROSIVE ENVIRONMENTS MTR
All basic components of Tsubaki SS chain are made of Stainless Steel SUS304 (except the spring clips, which are made of SUS301). This chain can be used in special environments such as underwater, acidic and alkaline applications. It can also be used in high and low temperatures (-20°C to +400°C). SUS304 is only marginally magnetic, which is the result of the cold-forging process.

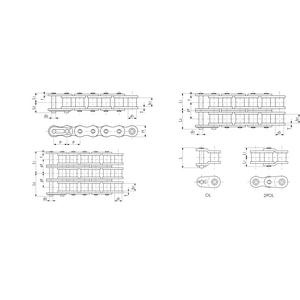

Technical specifications
Attributes
| Chain pitch | 12.7 mm |
|---|---|
| Profile | Simplex (1) |
| Chain | 08B-1 |
| Roller diameter | 8.51 mm |
| Inner width min. | 7.75 mm |
| Material | Stainless Steel |
| Pin length | 18.4 mm |
| Chain pin diameter | 4.45 mm |
| Weight | 0.676 kg |
| Plate type | Link |
| Plate height | 12 mm |
| Plate thickness | 1.6 mm |
| Tensile strength min. | 20.9 kN |
Show UNSPSC/ECL@SS
£ 66.70 excl. VAT
/ Each
£ 80.04 incl. VAT
Usually arrives within 14 working days
