SANDVIK C4-NC2000-10020-40 5728592

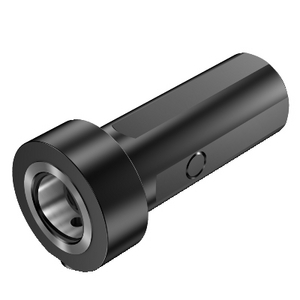

The Sandvik Coromant C4-NC2000-10020-40 is a cylindrical shank adapter with flats (metric 40) to a Coromant Capto® clamping unit (size C4), designed to provide optimal precision and stability during machining operations. This modular component allows for the adaptation of a machine tool without affecting torque transmission or vibrations. The Coromant Capto® interface ensures rapid tool changes, thereby minimizing machine downtime and maximizing productivity.

Features:
This component provides the transition between a cylindrical shank clamping device with flats and the Coromant Capto® system, ensuring a reliable mechanical connection and optimized torque transmission. The resulting mechanical connection is robust, and torque transmission is optimal. Its design includes a coolant supply with radial inlet and outlet ports, enabling effective cooling during machining. The Coromant Capto® system ensures a precise fit and significantly reduces setup times, meeting the requirements of modern machining centers and multifunction machines.

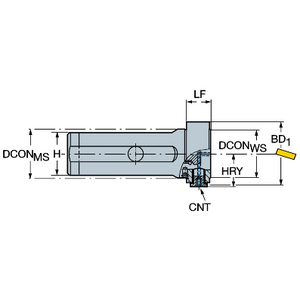

Specifications:
- Adaptive interface (machine side): cylindrical shank with 3 flats – metric 40.
- Adaptive interface (workpiece side): Coromant Capto® – size C4.
- Number of connections on the workpiece side: 1.
- Direction: neutral.
- Coolant inlet and outlet: radial.
- Coolant supply thread size: G 1/8-28.
- Maximum coolant pressure: 80 bar.
- Machine-side fitting diameter: 40 mm.
- Effective diameter: 28 mm.
- Workpiece-side connection diameter: 40 mm.
- Shank height: 37 mm.
- Effective length: 20 mm.
- Maximum torque: 50 Nm.
- Weight: 1.058 kg.

Brand information:
Sandvik Coromant is a global leader in industrial tooling, recognized for its innovative machining solutions. With over 80 years of expertise, the brand is committed to offering high-precision products for the manufacturing industry, reducing operating costs while increasing efficiency.

Cylindrical shank with flats for Coromant Capto® clamping unit
