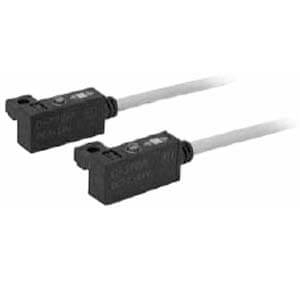

SMC D-J79WL AUTO SWITCH

D-RxK Amplifier

See technical informationSee documents

References

SMC:D-J79WL
Rubix:119A8558
Manufacturer :D-J79WL
EAN:3618035635769
brand logo

Technical specifications

Typesolid state auto switch
Executiond
Min. tension24 V
See all Specifications

Documents

Product details : SMC D-J79WL AUTO SWITCH


SMC offers a variety of auto switches for actuators and air grippers.; Solid state switches are available in a general purpose type or with 2-color indication, which allows the optimum operating position to be determined by the color of the light.; Solid state switches are also available in 2-color indication with diagnostic output, water resistant 2-color indication, built-in OFF-delay timer (200 ms), magnetic field resistant, heat resistant and wide range detection configurations.; Various lead wire lengths are available.
•Electrical entry: Grommet.
•Application Load: IC circuit/Relay/PLC, 24V DC Relay/PLC.
•Power voltage: 5/12/24V DC (4.5 to 28V DC).
•Load current: 5 to 80mA.
•Applicable Actuator Series: CDJ2, CDVJ3, CDVJ5, CDQ2, CDXW, CDY1S, CY1L, RSDQ, MDU, CE1, MK, MK2, CXT.

Model: J79W (2-wire)
Lead Wire Length: L (3 m)

Technical specifications


Attributes
Logistic Weight49 g
Typesolid state auto switch
Executiond
Min. tension24 V
Min. temperature-10 °C
Max. temperature60 °C
Max. tension24 V
£ 48.53 excl. VAT
/ Each
£ 58.24 incl. VAT
  • Delivery usually within ( 8 ) days
