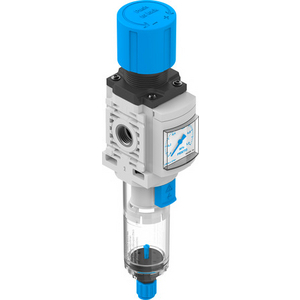

FESTO 8098265 FILTER REGULATOR MS4-LFR-1/4-D6-C-P-M-AG&
Filter regulator
References
festo:MS4-LFR-1/4-D6-C-P-M-AG-MPA-B
rubix:263A6698
manufacturer :8098265
ean:4052568569945
Technical specifications
| Material | pa-reinforced (housing);pc (bowl);nbr (seal);pom (knob, valve tappet);high alloy steel, galvanised steel (spring);pe (air filter) |
|---|---|
| Connection 1 | g 1/4 in |
| Filter fineness | 5 µm |
Product details : FESTO 8098265 FILTER REGULATOR MS4-LFR-1/4-D6-C-P-M-AG&
Basic component with sturdy and lightweight polymer housing. Fully compatible with the MS series.
Strengths
•Very compact and extremely lightweight series for use close to the process directly in the machine
Stable control response
With secondary exhaust
Integrated secondary exhaust and primary exhaust with return flow function
The rotary knob locks into place to prevent unintentional rotation
Stable control response
With secondary exhaust
Integrated secondary exhaust and primary exhaust with return flow function
The rotary knob locks into place to prevent unintentional rotation
Technical specifications
Attributes
| Material | pa-reinforced (housing);pc (bowl);nbr (seal);pom (knob, valve tappet);high alloy steel, galvanised steel (spring);pe (air filter) |
|---|---|
| Connection 1 | g 1/4 in |
| Filter fineness | 5 µm |
| Body size | 4 mm |
| Volume flow rate | 1500 l/min |
| Min. service pressure | 1 bar |
| Max. service pressure | 10 bar |
Show UNSPSC/ECL@SS
£ 58.07 excl. VAT
/ Each
£ 69.68 incl. VAT
Delivery usually within ( 8 ) days
