DORMER S52112.0XR1.0 6706682

Finger mills S521

See technical information

References

Dormer:S52112.0XR1.0
Rubix:376A3830
EAN:7320760682319

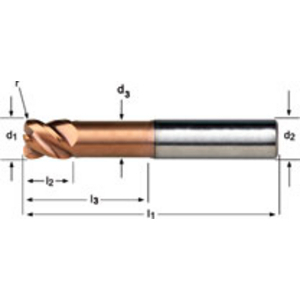

End Mill 12.0XR1.0
End Mill 12.0XR1.0
End Mill 12.0XR1.0

Technical specifications

Diameter12 mm
Type of tailha
Tail diameter12 mm
See all Specifications

Product details : DORMER S52112.0XR1.0 6706682

Solid carbide (VHM) 4-flute corner radius end mill with extra short cutting edge length. Necked shank with short projection length. DIN 6335 HA cylindrical shank. 45° helix and -10° rake angle. TiSiN coated for hardened steel >49 HRC.

Applications

• Hardened alloy steel (49 - 55 HRC >1620 N/mm²)
• Hardened alloy steel (55 - 63 HRC > 1980 N/mm²)

Technical specifications

Attributes
Diameter12 mm
Type of tailha
Tail diameter12 mm
Number of teeth4
Length of cut13 mm
Total length75 mm
Cutting materialcarbide
Coatingtisin
Machining materialhardened steel
£ 202.98 excl. VAT
/ Each
£ 243.58 incl. VAT
  • Usually arrives within 14 working days
