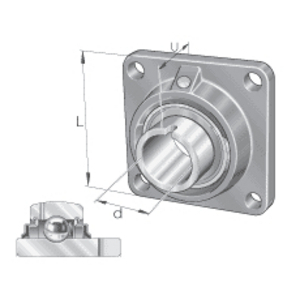

INA RCJL60-XL-N FLANGED HOUSING UNIT

Flanged housing unit

References

Superseded Ref:RCJL60-XL-N-I

INA:RCJL60-XL-N

Rubix:102A7891

Manufacturer :0947319180000

EAN:4054372939495

Inner diameter	60 mm
Width	175 mm
Fixation centre-to-centre distance	143 mm

Housing units RCJL, four-bolt flanged housing units, cast iron, non-locating bearing, drive slot on inner ring, R seals

Attributes

Inner diameter	60 mm
Width	175 mm
Fixation centre-to-centre distance	143 mm
Material	cast iron
Height	47.5 mm
Length	175 mm
Series	rcjl..-xl-n
Total bearing width	71.3 mm
Diameter of fixation holes	18 mm
Number of holes	4
Basic static load, radial - C0r	36000 N
Basic dynamic load, radial - Cr	56000 N
Outer diameter	175 mm
Weight	3.92 kg
Mounting typ	four‑bolt flanged (non‑locating bearing)

Show UNSPSC/ECL@SS

£ 139.62 ^{excl. VAT}

/ Each

£ 167.54 ^{incl. VAT}
