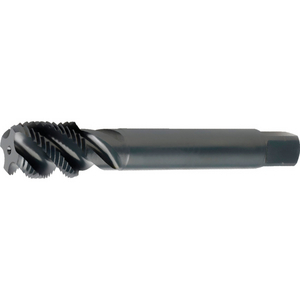

DORMER EX411.1/4 TAP 5973838
G(BSP) Machine Tap Spiral Flute 45°
References
dormer:EX411.1/4
rubix:270A3733
ean:7320760168745
Technical specifications
| Angle of helix | 45 ° |
|---|---|
| Input | 32 |
| Total length | 170 mm |
Product details : DORMER EX411.1/4 TAP 5973838
Series EX41 HSCO Spiral Flute Tap - BSPF
Strengths
Parallel Thread
Steam oxide surface treatment reduces wear and chip welding in abrasive or harder ferrous materials
Semi- Bottoming
Steam oxide surface treatment reduces wear and chip welding in abrasive or harder ferrous materials
Semi- Bottoming
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Stainless steel machining steel (<250 HB <850 N/mm²)
• Stainless steel - Austenitic (<320 HB <1100 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Stainless steel machining steel (<250 HB <850 N/mm²)
• Stainless steel - Austenitic (<320 HB <1100 N/mm²)
Technical specifications
Attributes
| Angle of helix | 45 ° |
|---|---|
| Input | 32 |
| Total length | 170 mm |
| Body material | HSS-E |
| Type | British blind bores |
| With cooling spray | No |
| Direction of threading | Right |
| Drilling diameter | 39.5 mm |
| Tail diameter | 32 mm |
| Square drive adapter | 24 mm |
| Coating | Steam Tempered |
Show UNSPSC/ECL@SS
£ 503.75 excl. VAT
/ Each
£ 604.50 incl. VAT
Usually arrives within 14 working days
