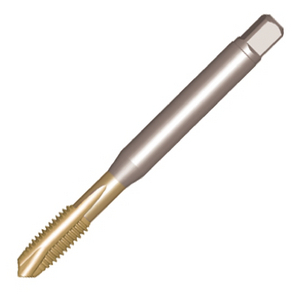

SANDVIK T200-XM100DA-M3 C110 COROTAP 200 CUTTING TAP 6539625
Machine thread-cutter machine for standard metric through-bores Sandvik Coromant
References
sandvik coromant:T200-XM100DA-M3C110
rubix:242A9023
Technical specifications
| Threading diameter | 3 mm |
|---|---|
| Thread | 0,5 mm |
Product details : SANDVIK T200-XM100DA-M3 C110 COROTAP 200 CUTTING TAP 6539625
C110 CoroTap™ 200 cutting tap with spiral point is part of the CoroTap™ 200 product family. Spiral point taps push the chips forward and are used for through holes. They have the strongest tap design due to shallow flutes. The flutes are only used for cutting fluid, not for chip evacuation.
Strengths
New geometry concepts specific for titanium and nickel based materials
New grades for titanium and nickel based material
Optimized core dimension
Optimized corner radius design
New grades for titanium and nickel based material
Optimized core dimension
Optimized corner radius design
Technical specifications
Attributes
| Threading diameter | 3 mm |
|---|---|
| Thread | 0,5 mm |
| Tail diameter | 3.5 mm |
| Coating | AlCrN |
| Material | Powder high speed steels |
| Angle of helix | 0 ° |
| Tolerance | 6H |
Show UNSPSC/ECL@SS
£ 21.32 excl. VAT
/ Each
£ 25.58 incl. VAT
Delivery within 10-15 business days
