SKF SPHERICAL ROLLER BEARING 23984CC/W33
Spherical roller bearing SKF
References
skf:23984 CC/W33
rubix:104A5913
manufacturer :167559
ean:7316571871936
Technical specifications
| Inner diameter | 420 mm |
|---|---|
| Outer diameter | 560 mm |
| Width | 106 mm |
Product details : SKF SPHERICAL ROLLER BEARING 23984CC/W33

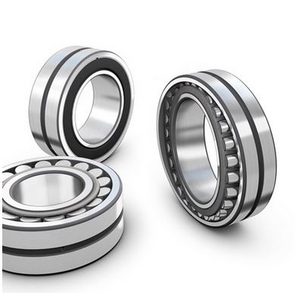

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 106x560x560 mm |
|---|---|
| Logistic Weight | 74500 g |
| Inner diameter | 420 mm |
| Outer diameter | 560 mm |
| Width | 106 mm |
| Bearing Clearance | cn |
| Series | 239c |
| Reference speed | 1000 rpm |
| Limit speed | 1100 rpm |
| Basic static load, radial - C0r | 4150000 N |
| Basic dynamic load, radial - Cr | 1760000 N |
| Sealing | open |
Show UNSPSC/ECL@SS
£ 4,349.88 excl. VAT
/ Each
£ 5,219.86 incl. VAT
Usually arrives within 14 working days
