SKF 24072CC/W33 SPHERICAL ROLLER

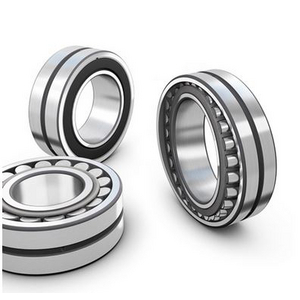

Spherical roller bearing SKF
References
skf:24072 CC/W33
rubix:237A1953
manufacturer :36662
ean:7316577650917
Technical specifications
| Inner diameter | 360 mm |
|---|---|
| Outer diameter | 540 mm |
| Width | 180 mm |
Product details : SKF 24072CC/W33 SPHERICAL ROLLER
Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 180x540x540 mm |
|---|---|
| Logistic Weight | 145800 g |
| Inner diameter | 360 mm |
| Outer diameter | 540 mm |
| Width | 180 mm |
| Bearing Clearance | cn |
| Series | 240c |
| Reference speed | 700 rpm |
| Limit speed | 1000 rpm |
| Basic static load, radial - C0r | 6550000 N |
| Basic dynamic load, radial - Cr | 3110000 N |
| Sealing | open |
Show UNSPSC/ECL@SS
£ 4,792.74 excl. VAT
/ Each
£ 5,751.29 incl. VAT
Usually arrives within 14 working days
