SKF SPHERICAL ROLLER BEARING 23160CCK/W33
Spherical roller bearing SKF
References
skf:23160 CCK/W33
rubix:104A9826
manufacturer :36073
ean:7316570367652
Technical specifications
| Inner diameter | 300 mm |
|---|---|
| Outer diameter | 500 mm |
| Width | 160 mm |
Product details : SKF SPHERICAL ROLLER BEARING 23160CCK/W33

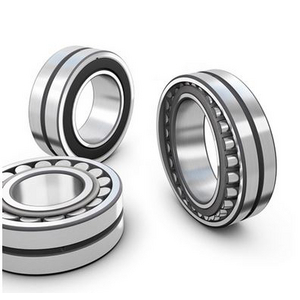

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 160x500x500 mm |
|---|---|
| Logistic Weight | 120000 g |
| Inner diameter | 300 mm |
| Outer diameter | 500 mm |
| Width | 160 mm |
| Bearing Clearance | CN |
| Series | 231C |
| Reference speed | 950 rpm |
| Limit speed | 1200 rpm |
| Basic static load, radial - C0r | 5100000 N |
| Basic dynamic load, radial - Cr | 2820000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 4,777.32 excl. VAT
/ Each
£ 5,732.78 incl. VAT
Usually arrives within 14 working days
