SMC KQ2L08-03S FITTING

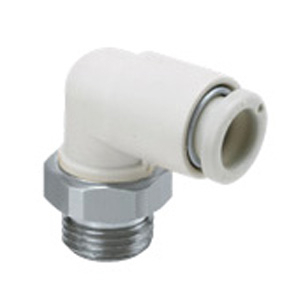

KQ2 One-touch Male Elbow
References
smc:KQ2L08-03S
rubix:80200402
Technical specifications
| Connection 1 | R 3/8 |
|---|---|
| Connection 2 | 8 |
Product details : SMC KQ2L08-03S FITTING
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Strengths
Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Technical specifications
Attributes
| Logistic Weight | 31 g |
|---|---|
| Connection 1 | R 3/8 |
| Connection 2 | 8 |
| Type of threading | R |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
| Material | C3604;PBT;PP |
Show UNSPSC/ECL@SS
£ 4.15 excl. VAT
/ Each
£ 4.98 incl. VAT
Delivery usually within ( 3 ) days
