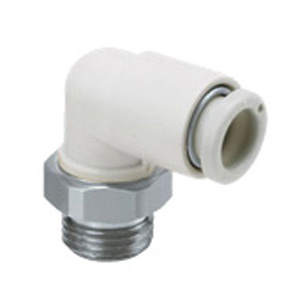

SMC KQ2L09-01AS ONE-TOUCH FITTING
KQ2 One-touch Male Elbow
References
smc:KQ2L09-01AS
rubix:393A7536
Technical specifications
| Connection 1 | 5/16 in |
|---|---|
| Connection 2 | 13,2 in |
Product details : SMC KQ2L09-01AS ONE-TOUCH FITTING
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Strengths
Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Technical specifications
Attributes
| Logistic Weight | 13 g |
|---|---|
| Connection 1 | 5/16 in |
| Connection 2 | 13,2 in |
| Length | 22 mm |
| Type of threading | R |
| Connecting diameter | R 1/8 '' |
| Threading | Imperial |
| Max. temperature | 60 °C |
| Min. temperature | 0 °C |
| Type of fluid | Air;Water |
Show UNSPSC/ECL@SS
£ 3.03 excl. VAT
/ Each
£ 3.64 incl. VAT
Usually arrives within 14 working days
