SMC KQ2H01-M5A FITTING
KQ2H One-touch Fitting
References
smc:KQ2H01-M5A
rubix:393A2704
Technical specifications
| Connection 1 | 1/8 in |
|---|---|
| Connection 2 | M5x0,8 |
Product details : SMC KQ2H01-M5A FITTING
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.

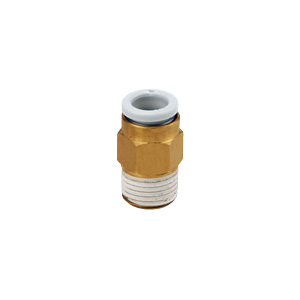

KQ2H, One-touch Fitting White Color - Male Connector
Strengths
Quick assembly/disassembly.
Applications
For vacuum and compressed air. Also suitable for water.
Technical specifications
Attributes
| Logistic Weight | 3 g |
|---|---|
| Connection 1 | 1/8 in |
| Connection 2 | M5x0,8 |
| Length | 17.3 mm |
| Type of threading | M |
| Connecting diameter | 1/8 '' |
| Threading | M5x0,8 |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
| Type of fluid | Air;Water |
| Material | C3604, PBT, PP |
Show UNSPSC/ECL@SS
£ 3.78 excl. VAT
/ Each
£ 4.54 incl. VAT
Usually arrives within 14 working days
