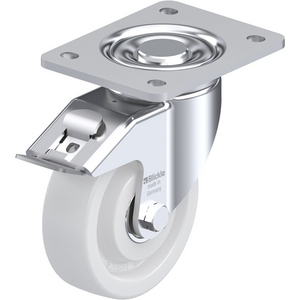

BLICKLE 606285 SWIVEL CASTOR WITH BRAKE
Light duty swivel castor, with bolt hole fitting, with synthetic expander Wheel, with thermoplastic rubber tread, with polypropylene wheel centre, with synthetic thread guard
References
blickle:LH-SPO 125K-3-FI
rubix:244A8524
manufacturer :606285
ean:4047526606282
Technical specifications
| Load capacity | 700 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 40 mm |
Product details : BLICKLE 606285 SWIVEL CASTOR WITH BRAKE
Bracket: LKRA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: TPA series
- tread: high-quality thermoplastic rubber-elastomer (TPE), hardness 85 Shore A, colour grey, non-marking, oil containing
- wheel centre: high-quality polypropylene, impact resistant, colour silver grey ("-ELS" version colour black)
- with synthetic thread guard, large
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- tread contains oil, may stain sensitive surfaces. alternatives: series VPA, VPP, POES, POEV, PATH
Technical specifications
Attributes
| Logistic Weight | 2600 g |
|---|---|
| Load capacity | 700 kg |
| Wheel diameter | 125 mm |
| Wheel width | 40 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Polyamide |
| Shore D Hardness | 70 Shore |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Beige |
| Min. temperature | -20 °C |
| Max. temperature | 80 °C |
| 165 mm | |
| 40 mm |
Show UNSPSC/ECL@SS
£ 118.93 excl. VAT
/ Each
£ 142.72 incl. VAT
Usually arrives within 14 working days
