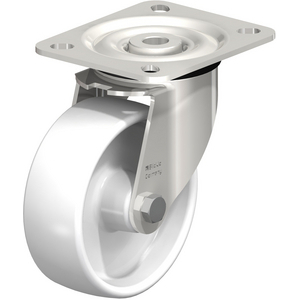

BLICKLE LX-PO 100G STAINLESS STEEL SWIVEL CASTOR 80X60 100MM WHEEL


Stainless steel swivel castor, with top plate fitting, medium duty design Nylon wheel

References
blickle:LX-PO 100G
rubix:227A1200
manufacturer :7484
ean:4047526007485
brand logo
brand logo
Technical specifications
Load capacity250 kg
Wheel diameter100 mm
Wheel width37 mm
See all Specifications

Product details : BLICKLE LX-PO 100G STAINLESS STEEL SWIVEL CASTOR 80X60 100MM WHEEL


Bracket: LX series

  • high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
  • all parts including axle material are corrosion-resistant
  • double ball bearing in the swivel head
  • strong central kingpin
  • swivel head seal
  • minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process

Wheel: PO series

  • high-quality nylon 6, impact resistant, hardness 70 Shore D, colour natural white

Other features:

  • high chemical resistance to many aggressive substances
  • operating temperature: -25 °C to +80 °C, reduced load capacity over +35 °C

Technical specifications


Attributes
Logistic Weight671 g
Load capacity250 kg
Wheel diameter100 mm
Wheel width37 mm
Wheel housing/rim materialPolyamide
Running sole/tire materialPolyamide
Type of bearingPlain bore
Running sole / tire colourBeige
Min. temperature-25 °C
Max. temperature80 °C
125 mm
37 mm
Show UNSPSC/ECL@SS
£ 55.12 excl. VAT
/ Each
£ 66.14 incl. VAT
  • Usually arrives within 14 working days
