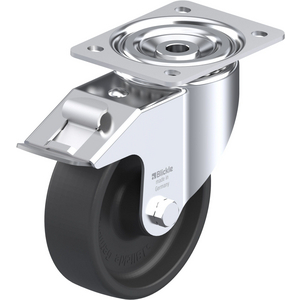

BLICKLE HEAT-RESISTANT PRESSED STEEL SWIVEL CASTOR 140 X 110 X 150
Light duty swivel castor, with bolt hole fitting, with synthetic expander, with brake system 'stop-fix' Wheel, with solid rubber tyres, with synthetic rim
References
blickle:LI-POHI 150G-FI
rubix:80381265
manufacturer :754704
ean:4047526087678
Technical specifications
| Load capacity | 350 kg |
|---|---|
| Wheel diameter | 150 mm |
| Wheel width | 50 mm |
Product details : BLICKLE HEAT-RESISTANT PRESSED STEEL SWIVEL CASTOR 140 X 110 X 150
Bracket: LKRA series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: VPA series
- tyre: high-quality solid rubber, hardness 80 Shore A, colour grey, non-marking, non-staining
- rim: high-quality nylon 6 or polypropylene in the electrically conductive version "-EL", impact resistant, colour black
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
Technical specifications
Attributes
| Logistic Weight | 2716 g |
|---|---|
| Load capacity | 350 kg |
| Wheel diameter | 150 mm |
| Wheel width | 50 mm |
| Wheel housing/rim material | Plastic |
| Running sole/tire material | Polyamide |
| Shore D Hardness | 85 Shore |
| Type of bearing | Plain bore |
| Running sole / tire colour | Grey |
| Min. temperature | -25 °C |
| Max. temperature | 250 °C |
| 190 mm | |
| 50 mm |
Show UNSPSC/ECL@SS
£ 133.61 excl. VAT
/ Each
£ 160.33 incl. VAT
Usually arrives within 14 working days
