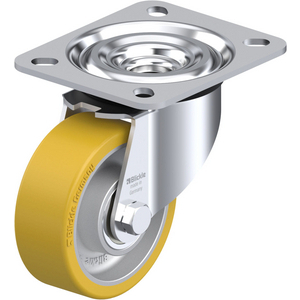

BLICKLE 331116 SWIVEL CASTOR L-ALTH 80K
Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-fix' Nylon heavy duty wheel, with steel thread guard
References
blickle:L-ALTH 80K
rubix:216A7690
manufacturer :331116
ean:4047526331115
Technical specifications
| Load capacity | 200 kg |
|---|---|
| Wheel diameter | 80 mm |
| Wheel width | 30 mm |
Product details : BLICKLE 331116 SWIVEL CASTOR L-ALTH 80K
Bracket: LH series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats
Wheel: SPO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 733 g |
|---|---|
| Load capacity | 200 kg |
| Wheel diameter | 80 mm |
| Wheel width | 30 mm |
| Wheel housing/rim material | Aluminium |
| Running sole/tire material | Polyurethane |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Brown |
| Shore A Hardness | 92 Shore |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| 102 mm | |
| 30 mm |
Show UNSPSC/ECL@SS
£ 46.01 excl. VAT
/ Each
£ 55.21 incl. VAT
Usually arrives within 14 working days
