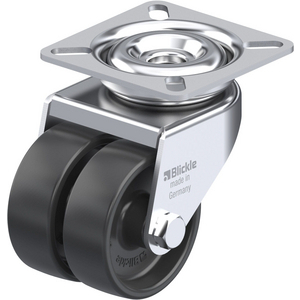

BLICKLE 106708 L DUTY TWIN WHEEL SWIV CAST WITH T PLATE FITTIN NYL WHL
Pressed steel swivel castor, heavy duty design, with top plate fitting, with brake system 'stop-fix' Nylon heavy duty wheel, with steel thread guard
References
blickle:LDA-POA 50G
rubix:244A2408
manufacturer :106708
ean:4047526106706
Technical specifications
| Load capacity | 80 kg |
|---|---|
| Wheel diameter | 50 mm |
| Wheel width | 18 mm |
Product details : BLICKLE 106708 L DUTY TWIN WHEEL SWIV CAST WITH T PLATE FITTIN NYL WHL
Bracket: LH series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- heavy fork and top plate
- double ball bearing in the swivel head
- bolted and secured central kingpin, extremely strong
- particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats
Wheel: SPO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 237 g |
|---|---|
| Load capacity | 80 kg |
| Wheel diameter | 50 mm |
| Wheel width | 18 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Polyamide |
| Shore D Hardness | 70 Shore |
| Type of bearing | Plain bore |
| Running sole / tire colour | Black |
| Min. temperature | -25 °C |
| Max. temperature | 80 °C |
| 71 mm | |
| 2x18 mm |
Show UNSPSC/ECL@SS
£ 10.73 excl. VAT
/ Each
£ 12.88 incl. VAT
Usually arrives within 14 working days
