DORMER EX401.1/4 TAP 1.1/4 INCH X 11 5974202
Machine taps EX40
References
dormer:EX401.1/4
rubix:2019402
ean:7320760168639
Technical specifications
| Angle of helix | 45 ° |
|---|---|
| Input | 32 |
| Total length | 170 mm |
Product details : DORMER EX401.1/4 TAP 1.1/4 INCH X 11 5974202

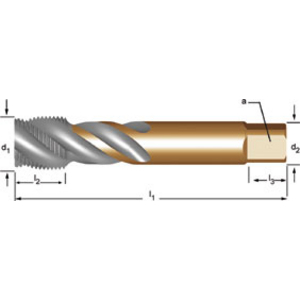

HSS-E Machine tap for gas thread uncoated DIN 5156 form C 45° spiralised 2.5xD blind holes for steel <1200 N/mm². Copper Brass en bronze <200 HB. Aluminium and aluminium-magnesium alloys.
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed Silicon >10% whisker reinforced Aluminium-alloys Magnesium-alloys (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Alloy steel hardened and tempered steel (>250<350 HB >850<1200 N/mm²)
• Aluminium Magnesium non-alloyed (<100 HB <350 N/mm²)
• Aluminium alloyed Silicon 0.5% (<150 HB <500 N/mm²)
• Aluminium alloyed Silicon > 0.5% < 10% (<120 HB <400 N/mm²)
• Aluminium alloyed Silicon >10% whisker reinforced Aluminium-alloys Magnesium-alloys (<120 HB <400 N/mm²)
Technical specifications
Attributes
| Angle of helix | 45 ° |
|---|---|
| Input | 32 |
| Total length | 170 mm |
| Body material | HSS-E |
| Type | British through-bores |
| With cooling spray | No |
| Drilling diameter | 39.5 mm |
| Square drive adapter | 32 mm |
Show UNSPSC/ECL@SS
£ 503.75 excl. VAT
/ Each
£ 604.50 incl. VAT
Usually arrives within 14 working days
