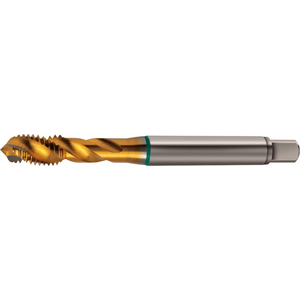

GUHRING 01288 003.000 MACHINE TAPS 9012880030000
Machine taps for ISO metric screw threads type 1288
See technical informationReferences
Gühring:1288 3.000
Rubix:337A3831
Manufacturer :9012880030000
EAN:4031093703031
Technical specifications
| Threading | metric |
|---|---|
| Threading diameter | 3 mm |
| Type | metric blind bores |
Product details : GUHRING 01288 003.000 MACHINE TAPS 9012880030000
Design:Tolerance range ISO 2/6H, type N, with point form C (2?3 threads).
Application:For regular metric threads according to ISO DIN 13. Particularly suitable for universal materials such as construction steels, machining steels, case-hardening steels, tempered steels, nitriding steels and nodular graphite iron.
Note:HSS-E PM is distinguished by its high resilience (stronger edge stability, wear resistance) and a higher tool life.
Application:For regular metric threads according to ISO DIN 13. Particularly suitable for universal materials such as construction steels, machining steels, case-hardening steels, tempered steels, nitriding steels and nodular graphite iron.
Note:HSS-E PM is distinguished by its high resilience (stronger edge stability, wear resistance) and a higher tool life.
Blind hole machine tap
Note: HSS-E PM is distinguished by its high resilience (stronger edge stability, wear resistance) and a higher tool life. Advantages: Significantly higher process reliability, up to 1/3 longer life and better thread surface.
Design: Tolerance range ISO 2/6H, type N, with point form C (2–3 threads).
Application: For regular metric threads according to DIN 13. Particularly suitable for universal materials such as construction steels, machining steels, case-hardening steels, tempered steels, nitriding steels and nodular graphite iron.
Note: HSS-E PM is distinguished by its high resilience (stronger edge stability, wear resistance) and a higher tool life. Advantages: Significantly higher process reliability, up to 1/3 longer life and better thread surface.
Technical specifications
Attributes
| Threading | metric |
|---|---|
| Threading diameter | 3 mm |
| Type | metric blind bores |
| With cooling spray | no |
| Direction of threading | right |
| Drilling diameter | 2.5 mm |
| Tail diameter | 3.5 mm |
| Square drive adapter | 2.7 mm |
| Thread depth | 6 mm |
| Angle of helix | 40 ° |
| Coating | tin |
| Total length | 56 mm |
| Body material | hss-e |
| Tolerance | iso2/6h |
Show UNSPSC/ECL@SS
£ 33.12 excl. VAT
/ Each
£ 39.74 incl. VAT
- Usually arrives within 14 working days
