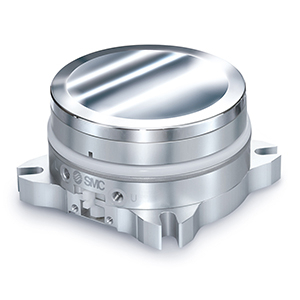

Centring unit Heavy workpieces can be aligned and positioned with small cylinders Workpieces can be moved in any direction and even rotated 360° Max. allowable load weight up to 1000 kg Centering accuracy: ±1 mm or less Built-in air locking mechanism 3 types of table material can be selected External photo sensor can be mounted.

Strengths

Alignment and positioning of transferred work pieces. Contributes to space saving on conveyor lines. Max. allowable load weight: 1000 kg. Workpieces can be moved in any direction. Ball bearings allow for smooth operation. Table centering accuracy ± 1 mm or less (Workpiece not loaded). Table center movable range: Max. ø100 mm.

Technical specifications

Attributes

Material	Stainless Steel
Design size	10
Min. temperature	0 °C
Max. temperature	60 °C

Show UNSPSC/ECL@SS

£ 1,562.18 ^{excl. VAT}

/ Each

£ 1,874.62 ^{incl. VAT}

Usually arrives within 14 working days

SMC MACM10-50SPV-X131 CENTERING UNIT

Product details : SMC MACM10-50SPV-X131 CENTERING UNIT
