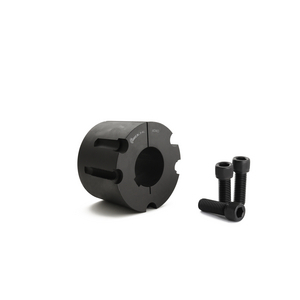

MECALINE 4040T 100MM 4040-100 TAPER BUSH

MECALINE 4040T 100MM 4040-100 TAPER BUSH

Mecaline Taper Bush Metric Bore

See technical informationSee documents
References
Mecaline:MA4040100
Rubix:45036105
Manufacturer :857067
EAN:3660338123351
brand logo
Technical specifications
Taper bush4040
Materialcast iron gg25
See all Specifications
Documents

Product details : MECALINE 4040T 100MM 4040-100 TAPER BUSH

Mecaline Taper bushes offer an ideal means of shaft fixing for most applications. They are simple to use and are available in a full range of metric sizes.
TAPER BUSH 4040 BORE 100

Strengths

GG 25 Cast Iron, provided boxed with 3 cap head screws

Applications

For fixing power transmission components, V-Pulleys, Timing pulleys, Couplings, Sprockets

Technical specifications

Attributes
Taper bush4040
Materialcast iron gg25
Keyway width28 mm
Torque setting169 N.m
Bushing length101.6 mm
Reaming diameter100 mm
Show UNSPSC/ECL@SS
£ 116.72 excl. VAT
/ Each
£ 140.06 incl. VAT
  • Usually arrives within 14 working days
