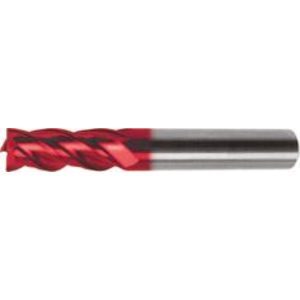

GUHRING 05735 018.000 END MILL SOLID CARBIDE 18.000MM TYPE N 6527L
Milling cutter with shank, N, solid carbide, Fire type 2448
See technical informationReferences
Product details : GUHRING 05735 018.000 END MILL SOLID CARBIDE 18.000MM TYPE N 6527L
Cutting speed approx. 50% higher than with non-coated tools. Dry machining possible. Air cooling recommended.
Application: Can be used for peripheral milling as well as for universal machining. For milling depths up to 2 x D.Can also be used for trimming and finishing milling.

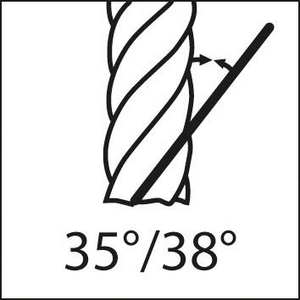

Can be used for rough grinding, slot cutting and finishing milling. The irregular spiral lead 35°/38° results in particularly smooth running and thus very good surface on the workpiece. A much longer tool life is achieved than with conventional tools, as well as maximum stability during machining. In addition, feeds higher by up to 60% can be realized.
Design: Ultra-fine grit solid carbide, type N, DIN 6527, 35°/38°, with centre cut.
Cutting speed approx. 50% higher than with non-coated tools. Dry machining possible. Air cooling recommended.
Application: Can be used for peripheral milling as well as for universal machining. For milling depths up to 2 x D. Can also be used for trimming and finishing milling. Can be used for rough grinding, slot cutting and finishing milling. The irregular 35°/38° helical pitch results in particularly smooth running and thus very good surface on the workpiece. A much longer tool life is achieved than with conventional tools, as well as maximum stability during machining. In addition, feeds higher by up to 60% can be realised.

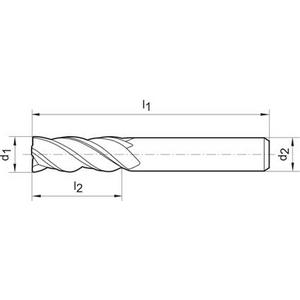

Technical specifications
| Diameter | 18 mm |
|---|---|
| Type of tail | ha |
| Tail diameter | 18 mm |
| Number of teeth | 4 |
| Length of cut | 32 mm |
| Total length | 92 mm |
| Centre cut | yes |
| Cutting material | carbide |
| Coating | fire |
| Type | ratio cutter rf 100 u (type n, form a) |
| Angle of helix | 38 ° |
| Machining material | cast iron;steel |
| Capacity length | 42 mm |
| Cutting angle | 45 ° |
