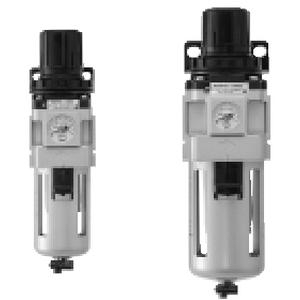

SMC AWD30-F03H MICRO MIST SEPARATOR REGULATOR
Modular SUBMICRONIC filter-regulator AWD30 series
References
smc:AWD30-F03H
rubix:120A4222
Technical specifications
| Material | Polycarbonate bowl |
|---|---|
| Connection 1 | G 3/8 |
| Filter fineness | 0.01 µm |
Product details : SMC AWD30-F03H MICRO MIST SEPARATOR REGULATOR
For applications requiring micro-mist separation up to 0.01µm with adjustable pressure regulation, the AWD offers these features built into one unit. This combination of products saves space and mounting hardware. Available with ports from 1/8 to 1/2 with NPT, Rc and G (PF) threads as standard. The many options available such as auto-drain, gauge, variety of bowl choices and regulation set pressures make this series easy to configure to your application.
•modular micro mist separator regulator Filtration: 0.01µm Body size: 1/8, 3/8, 1/2 Port size: 1/8, 1/4, 3/8 and 1/2 Available in thread types Rc, NPT or G(PF)
Size: 30 (3/8)
Thread: F (G)
Port Size: 03 (3/8)
Accessories: H (With set nut (for panel mount))
Options: None
Pressure Unit: None
Size: 30 (3/8)
Thread: F (G)
Port Size: 03 (3/8)
Accessories: H (With set nut (for panel mount))
Options: None
Pressure Unit: None
Technical specifications
Attributes
| Logistic Weight | 600 g |
|---|---|
| Material | Polycarbonate bowl |
| Connection 1 | G 3/8 |
| Filter fineness | 0.01 µm |
| Body size | 30 mm |
| Volume flow rate | 180 l/min |
| Min. service pressure | 0.5 bar |
| Max. service pressure | 8.5 bar |
Show UNSPSC/ECL@SS
£ 83.75 excl. VAT
/ Each
£ 100.50 incl. VAT
Delivery usually within ( 4 ) days
