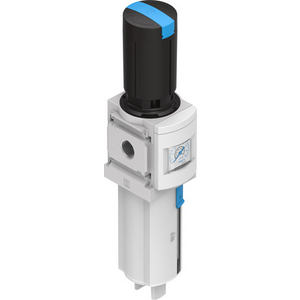

FESTO 529194 FILTER REGULATOR MS6-LFR-1/2-D7-EUV-AS
MS6-LFR filter control valve
See technical informationSee documentsReferences
Festo:MS6-LFR-1/2-D7-EUV-AS
Rubix:114A3066
Manufacturer :529194
EAN:4052568163747
Documents
Product details : FESTO 529194 FILTER REGULATOR MS6-LFR-1/2-D7-EUV-AS
Filter regulator MS6-LFR-1/2-D7-EUV-AS Maximum output pressure 12 bar, 40 µm Filter, with pressure gauge, lockable regulator head, metal bowl guard, fully automatic Condensate drain, flow direction from left to right. Size=6, Series=MS, Actuator lock=(* Rotary knob with lock, * with accessories, lockable), Assembly Position=Vertical +/- 5°, Grade of filtration=40 µm
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 360x140x140 mm |
|---|---|
| Logistic Weight | 1306,1 g |
| Threading diameter (inch) | 1/2 '' |
| Material | die-cast aluminum |
| Volume flow rate | 4500 l/min |
| Filter fineness | 40 µm |
| Connection 1 | 1/2 |
Show UNSPSC/ECL@SS
£ 131.88 excl. VAT
/ Each
£ 158.26 incl. VAT
- In stock: Next day delivery
