SKF NEEDLE ROLLER BEARING HK 1214 RS


Needle Roller Bearing

References
skf:HK 1214 RS
rubix:105A4234
manufacturer :8623
ean:7316577301635
brand logo
brand logo
Technical specifications
Inner diameter12 mm
Outer diameter18 mm
Width14 mm
See all Specifications

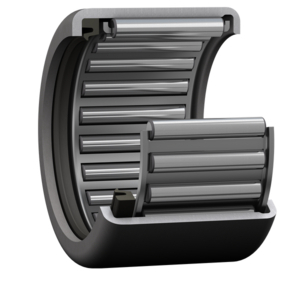

Product details : SKF NEEDLE ROLLER BEARING HK 1214 RS


Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness. The integral sealing can significantly prolong bearing service life because it keeps lubricant in the bearings and contaminants out. Sealed bearings are delivered with an initial grease fill.

Strengths

- High radial load carrying capacity
- High stiffness
- Very low cross-sectional height

Technical specifications


Attributes
Logistics dimensions (L x W x H)14x18x18 mm
Logistic Weight10 g
Inner diameter12 mm
Outer diameter18 mm
Width14 mm
Bearing ClearanceCN
SeriesHK
MaterialBearing steel
CageSteel
SealingOpen
Limit speed10000 rpm
Number of rows1
Basic static load, radial - C0r7350 N
Basic dynamic load, radial - Cr6270 N
Show UNSPSC/ECL@SS
£ 3.84 excl. VAT
/ Each
£ 4.61 incl. VAT
  • Usually arrives within 14 working days
