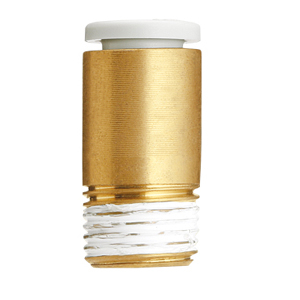

SMC KQ2S10-01NS NICKEL BRASS FITTING 1/8 MALE THREAD 10 TUBE
One-touch Fitting Series KQ2
References
smc:KQ2S10-01NS
rubix:393A7007
Technical specifications
| Connection 1 | R 1/8 |
|---|---|
| Connection 2 | 10 |
Product details : SMC KQ2S10-01NS NICKEL BRASS FITTING 1/8 MALE THREAD 10 TUBE
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Strengths
•Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa
Technical specifications
Attributes
| Logistic Weight | 18 g |
|---|---|
| Connection 1 | R 1/8 |
| Connection 2 | 10 |
| Length | 16 mm |
| Type of threading | R |
| Max. temperature | 60 °C |
| Min. temperature | -5 °C |
| Material | Brass |
Show UNSPSC/ECL@SS
£ 3.42 excl. VAT
/ Each
£ 4.10 incl. VAT
Usually arrives within 14 working days
