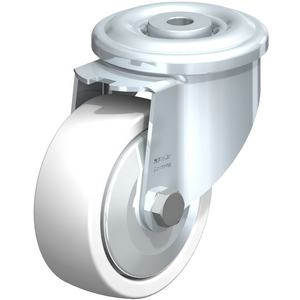

BLICKLE LKR-SPO 100G-FA 750593 SWIVEL CASTOR
Pressed steel swivel castor, medium heavy duty brackets, with bolt hole fitting Nylon heavy duty wheel, with steel thread guard
References
blickle:LKR-SPO 100G-FA
rubix:218A5893
manufacturer :750593
ean:4047526031206
Technical specifications
| Load capacity | 350 kg |
|---|---|
| Wheel diameter | 100 mm |
| Wheel width | 37 mm |
Product details : BLICKLE LKR-SPO 100G-FA 750593 SWIVEL CASTOR
Bracket: LKR series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: SPO series
- high-quality nylon 6, impact resistant, hardness 70 Shore D, extremely robust heavy-duty version, colour natural white
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +80 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 1101 g |
|---|---|
| Load capacity | 350 kg |
| Wheel diameter | 100 mm |
| Wheel width | 37 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Polyamide |
| Min. temperature | -25 °C |
| Max. temperature | 80 °C |
| Type of bearing | Plain bore |
| Running sole / tire colour | Beige |
| 130 mm | |
| 37 mm |
Show UNSPSC/ECL@SS
£ 67.71 excl. VAT
/ Each
£ 81.25 incl. VAT
Usually arrives within 14 working days
