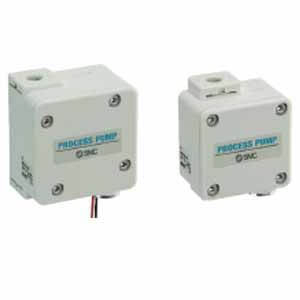

SMC PB1011A-F01 PROCESS PUMP EXTERNAL AIR OPERATED
Process Pump
References
smc:PB1011A-F01
rubix:129A8036
Product details : SMC PB1011A-F01 PROCESS PUMP EXTERNAL AIR OPERATED
The PB series is a compact, single acting diaphragm pump which is suitable for transfer and recovery of a wide variety of fluids. The PB series is available with a built-in solenoid valve or in an air operated style. Space is saved due to the centralization of piping and wiring areas on the top and bottom surfaces.
•Body Wetted Parts: Polypropylene/Stainless Steel.
•Light and very compact size with flow range.
•Large capacity diaphragm.
•Transferring and collecting a wide range of fluids.
•Simple maintenance.
•Several connection methods: Female thread.
Actuation: 1 (Built-in Solenoid Valve)
Thread Type: F (G)
Option: None
Made to Order: None
•Light and very compact size with flow range.
•Large capacity diaphragm.
•Transferring and collecting a wide range of fluids.
•Simple maintenance.
•Several connection methods: Female thread.
Actuation: 1 (Built-in Solenoid Valve)
Thread Type: F (G)
Option: None
Made to Order: None
Strengths
Low particle generation due to the diaphragm structure
Flammable fluids can be used
Self-priming makes priming unnecessary. Sucks the liquid even if the pump is dry
Assembled in a clean room. Double packaged (PB1313A)
Easy to adjust the flow rate by the frequency of ON/OFF of the solenoid valve.
Flammable fluids can be used
Self-priming makes priming unnecessary. Sucks the liquid even if the pump is dry
Assembled in a clean room. Double packaged (PB1313A)
Easy to adjust the flow rate by the frequency of ON/OFF of the solenoid valve.
Technical specifications
Attributes
| Logistic Weight | 170 g |
|---|---|
| Min. temperature | 0 °C |
| Max. temperature | 50 °C |
| Weight | 0.18 kg |
| Type | Process Pump |
Show UNSPSC/ECL@SS
£ 202.14 excl. VAT
/ Each
£ 242.57 incl. VAT
Delivery usually within ( 4 ) days
