Standard series
Wide range of variants: wide selection for maximum flexibility in standard applications
PBT and nickel-plated brass
Operating media compressed air, vacuum, water. Water as per the manufacturer's declaration, see www.festo.com/certificates/QS

Technical specifications

Attributes

Logistics dimensions (L x W x H)	110x100x25 mm
Logistic Weight	22,25 g
Connection 1	12 mm
Connection 2	12 mm
Length	47.8 mm
Max. temperature	80 °C
Min. temperature	-10 °C
Material	PBT (Housing);POM (Release Ring);NBR (Tubing Seal);High-Alloy Stainless Steel (Tubing Clamp Component)

Show UNSPSC/ECL@SS

£ 6.03 ^{excl. VAT}

/ Each

£ 7.24 ^{incl. VAT}

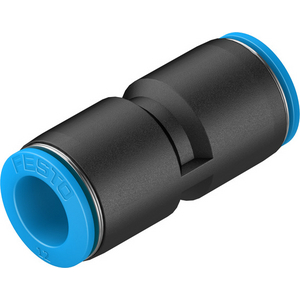

FESTO 153035 PUSH-IN CONNECTOR QS-12
