TSUBAKI 0804000350-M3.05 RS35-NP-1 CHAIN CORROSIVE ENVIRONMENTS 10FT

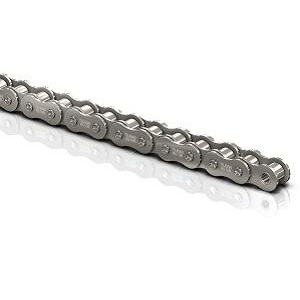

RS35-NP-1 Tsubaki ANSI chain for corrosive environments
References
tsubaki:RS35NP 1 RP
rubix:267A0647
manufacturer :0804000350
ean:0096223185198
Technical specifications
| Chain pitch | 9.525 mm |
|---|---|
| Chain length | 3050 mm |
| Profile | Simplex (1) |
Product details : TSUBAKI 0804000350-M3.05 RS35-NP-1 CHAIN CORROSIVE ENVIRONMENTS 10FT
ANSI NP Chain is a Tsubaki ANSI G7 chain that has been plated with Nickel. NP chain has a light corrosion resistance and an attractive appearance. NP chain is suitable for outdoor conditions exposed to water. There is a 15% reduction in Maximum Allowable Load compared to the corresponding ANSI G7 chain, so please take this into account when making your chain selection. The working temperature range is: -10°C to +60°C.
Technical specifications
Attributes
| Logistic Weight | 1010 g |
|---|---|
| Chain pitch | 9.525 mm |
| Chain length | 3050 mm |
| Profile | Simplex (1) |
| Chain | ASA 35-1 |
| ISO code | 06C-1 |
| Weight | 1.01 kg |
| Roller diameter | 5.08 mm |
| Pin length | 13.5 mm |
| Tensile strength min. | 9.8 kN |
| Plate height | 9 mm |
| Plate thickness | 1.25 mm |
| Chain pin diameter | 4.78 mm |
Show UNSPSC/ECL@SS
£ 97.13 excl. VAT
/ Each
£ 116.56 incl. VAT
Usually arrives within 14 working days
