SKF SPHERICAL ROLLER BEARING 23072CC/W33
Spherical Roller Bearing
References
skf:23072 CC/W33
rubix:105A1404
manufacturer :35810
ean:7316570821840
Technical specifications
| Inner diameter | 360 mm |
|---|---|
| Outer diameter | 540 mm |
| Width | 134 mm |
Product details : SKF SPHERICAL ROLLER BEARING 23072CC/W33

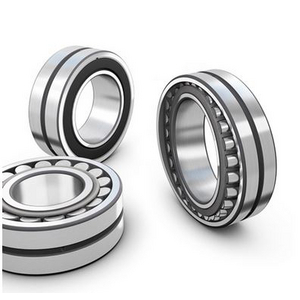

Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 134x540x540 mm |
|---|---|
| Logistic Weight | 107900 g |
| Inner diameter | 360 mm |
| Outer diameter | 540 mm |
| Width | 134 mm |
| Bearing Clearance | CN |
| Series | 230C |
| Cage | Steel |
| Reference speed | 950 rpm |
| Limit speed | 1200 rpm |
| Basic static load, radial - C0r | 4800000 N |
| Basic dynamic load, radial - Cr | 2390000 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 3,646.62 excl. VAT
/ Each
£ 4,375.94 incl. VAT
Usually arrives within 14 working days
