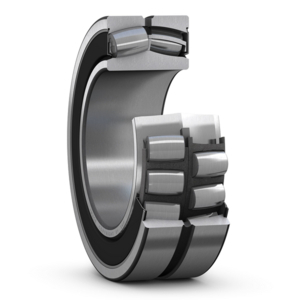

SKF 23122-2CS5/VT143 SPHERICAL ROLLER BEARING
Spherical Roller Bearing
References
skf:23122-2CS5/VT143
rubix:389A2636
manufacturer :305877
ean:7316573402855
Technical specifications
| Inner diameter | 110 mm |
|---|---|
| Outer diameter | 180 mm |
| Width | 56 mm |
Product details : SKF 23122-2CS5/VT143 SPHERICAL ROLLER BEARING
Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Strengths
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
Technical specifications
Attributes
| Logistic Weight | 5306 g |
|---|---|
| Inner diameter | 110 mm |
| Outer diameter | 180 mm |
| Width | 56 mm |
| Bearing Clearance | CN |
| Series | 231C |
| Limit speed | 800 rpm |
| Basic static load, radial - C0r | 585000 N |
| Basic dynamic load, radial - Cr | 374000 N |
Show UNSPSC/ECL@SS
£ 421.33 excl. VAT
/ Each
£ 505.60 incl. VAT
Usually arrives within 14 working days
