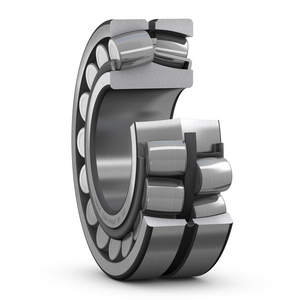

SKF SPHER ROLLER BEARING 22222 EK/C4
Spherical Roller Bearing
References
skf:22222 EK/C4
rubix:105A0814
manufacturer :35137
ean:7316570881790
Technical specifications
| Inner diameter | 110 mm |
|---|---|
| Outer diameter | 200 mm |
| Width | 53 mm |
Product details : SKF SPHER ROLLER BEARING 22222 EK/C4
Spherical roller bearings have two rows of symmetrical rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis.
Strengths
- Accommodate misalignment
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
- High load carrying capacity
- Relubrication features
- Low friction and long service life
- Increased wear resistance
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 53x200x200 mm |
|---|---|
| Logistic Weight | 6867 g |
| Inner diameter | 110 mm |
| Outer diameter | 200 mm |
| Width | 53 mm |
| Bearing Clearance | C4 |
| Series | 222E |
| Cage | Steel |
| Reference speed | 3000 rpm |
| Limit speed | 4000 rpm |
| Basic static load, radial - C0r | 640 N |
| Basic dynamic load, radial - Cr | 572 N |
| Sealing | Open |
Show UNSPSC/ECL@SS
£ 333.05 excl. VAT
/ Each
£ 399.66 incl. VAT
Usually arrives within 14 working days
