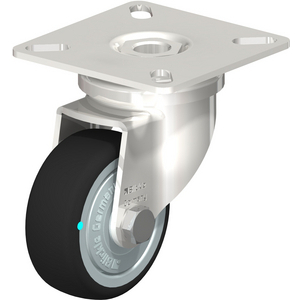

BLICKLE LPXA-PATH50KD-FK LIGHT DUTY S/S SWIVEL CASTOR
Stainless steel light duty swivel castor, with top plate fitting Wheel, with thermoplastic polyurethane tread, with nylon wheel centre, with synthetic thread guard
References
blickle:LPXA-PATH 50KD-FK
rubix:215A9724
manufacturer :760901
ean:4047526119775
Technical specifications
| Load capacity | 75 kg |
|---|---|
| Wheel diameter | 50 mm |
| Wheel width | 19 mm |
Product details : BLICKLE LPXA-PATH50KD-FK LIGHT DUTY S/S SWIVEL CASTOR
Bracket: LPXA series
- high-quality chromium-nickel steel (1.4301/AISI 304), stainless steel, vibration-ground finishing
- all parts including axle material are corrosion-resistant
- double ball bearing in the swivel head
- strong central kingpin
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: PATH series
- tread: high-quality thermoplastic polyurethane (TPU), hardness 94 Shore A, colour dark grey, non-marking, non-staining
- wheel centre: high-quality nylon 6, impact resistant, colour silver grey
- large thread guard
with additional
ball bearing seals
- very high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +35 °C
Technical specifications
Attributes
| Logistic Weight | 210 g |
|---|---|
| Load capacity | 75 kg |
| Wheel diameter | 50 mm |
| Wheel width | 19 mm |
| Wheel housing/rim material | Polyamide |
| Running sole/tire material | Polyurethane |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| Type of bearing | Ball bearing (C) |
| Running sole / tire colour | Grey |
| 71 mm | |
| 19 mm |
Show UNSPSC/ECL@SS
£ 33.58 excl. VAT
/ Each
£ 40.30 incl. VAT
Usually arrives within 14 working days
