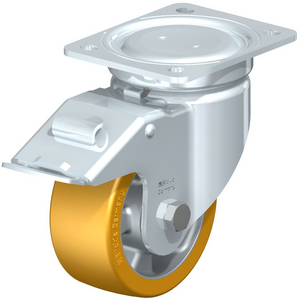

BLICKLE 759169 CASTOR SWILVEL BRAKE LUH-ALTH 127K-FI EACH
Pressed steel swivel castor, enclosed design, with top plate fitting, with brake system 'stop-fix' Heavy duty wheel, with Blickle Extrathane® polyurethane tread, with aluminium wheel centre
References
blickle:LU-ALTH 127K-FI
rubix:245A6758
manufacturer :759169
ean:4047526118730
Technical specifications
| Load capacity | 750 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 54 mm |
Product details : BLICKLE 759169 CASTOR SWILVEL BRAKE LUH-ALTH 127K-FI EACH
Bracket: LUH series
- strong pressed steel, zinc-plated, blue-passivated, Cr6-free
- four-point ball bearing for extremely heavy loads
- enclosed and sealed swivel head
- particularly resistant to shocks and impact due to specially-shaped, hardened bearing seats
Wheel: ALTH series
- tread: high-quality polyurethane elastomer Blickle Extrathane®, hardness 92 Shore A, colour light brown, non-marking, non-staining
- wheel centre: die-cast aluminium, colour silver grey
- high chemical resistance to many aggressive substances
- operating temperature: -20 °C to +70 °C, temporarily up to +90 °C, reduced load capacity over +40 °C
Technical specifications
Attributes
| Load capacity | 750 kg |
|---|---|
| Wheel diameter | 125 mm |
| Wheel width | 54 mm |
| Wheel housing/rim material | Aluminium |
| Running sole/tire material | Polyurethane |
| Min. temperature | -20 °C |
| Max. temperature | 70 °C |
| Type of bearing | Ball bearing |
| Running sole / tire colour | Brown |
| 170 mm | |
| 54 mm |
Show UNSPSC/ECL@SS
£ 224.19 excl. VAT
/ Each
£ 269.03 incl. VAT
Usually arrives within 14 working days
