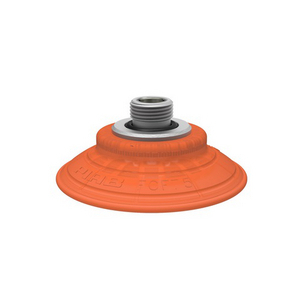

PIAB FCF-P SUCTION CUPS 118423

Special designed friction cups for oily surfaces, such as sheets in metal forming processes
Normal wear on friction cup will not affect the long term shear force performance
Best choice if > 0.1g/m2 press oil is used on the sheet
Thanks to the strong grip on oily surfaces, the suction cups can withstand high shear forces, typically 2–4 times more than corresponding conventional suction cups
The "FCF" design is suitable for slightly domed and flat surfaces, e.g., such as those encountered when handling metal sheets in press lines
The suction cups have support cleats that prevent thin objects from being disfigured
DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled

Oily sheet metal
