GATES 933509000 SUPER HC V-BELT SPC9000

SuperHC SPC

See technical information

References

Gates:SPC9000 SUPERHC
Rubix:101A8018
Manufacturer :933509000
EAN:5412571079968
brand logo

Technical specifications

Profilespc
Upper width22 mm
Pitch length9000 mm
See all Specifications

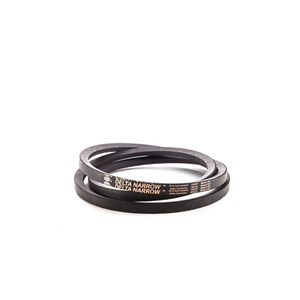

Product details : GATES 933509000 SUPER HC V-BELT SPC9000


Wrapped V-belt with a narrow profile. The oil and heat resistant Flex-Weave® wrapping protects the core of the belt against the most extreme conditions. The vulcanised ' flex-bonded ' tensile cords offer superior resistance to bending and tensile forces, fatigue and shock loading. More power in the same space or the same power and space savings of up to 50%.

Strengths

• Oil and heat resistant.
• Static conductive (ISO 1813).
• Complies with ATEX standards.
• UNISET tuning system.

Technical specifications


Attributes
Profilespc
Upper width22 mm
Pitch length9000 mm
Interior length8917 mm
Outer length9030 mm
Thickness18 mm
Sheathedyes
Seriessuper hc
Shape of teethsmooth
Materialcr
Min. Operation temperature-30 °C
Max. Operation temperature70 °C
Minimum Pulley Diameter250 mm
£ 217.44 excl. VAT
/ Each
£ 260.93 incl. VAT
  • Usually arrives within 14 working days
