References
Timken:22217 EMW33
Rubix:105A2861
EAN:0087796231917

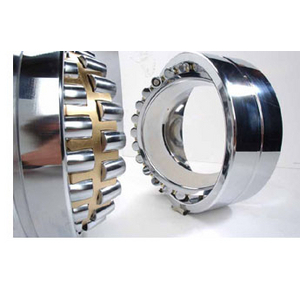

Product details : TIMKEN 22217EMW33 SPHERICAL ROLLER BEARING
Timken spherical roller bearings
Timken spherical roller bearings
Strengths
High radial load capacity, moderate axial load capacity under combined loading conditions, and the ability to compensate for misalignments.
Applications
Metals; Power generation; Oil/gas; Aggregates/Cement; Forestry products; Rubber/Plastics; Heavy mobile equipment; Large watercraft (military and commercial); Gearboxes; Drive hub; Wind turbines; Cranes; Textiles; Mechanical presses; Marine gearboxes; Printing presses; Material handling; Conveying systems; Crawler excavators; Mechanical excavators; Conveyors; Planetary gearboxes for transport trucks; Excavators; Bulldozers; Rollers; Side-control loaders; Agricultural machinery/Balers; Locomotives; Turbochargers for locomotives; Tanks; Mobile artillery; Helicopter gearboxes.
Technical specifications
Attributes
| Inner diameter | 85 mm |
|---|---|
| Outer diameter | 150 mm |
| Width | 36 mm |
| Bearing Clearance | cn |
| Sealing | open |
| Material | steel |
| Weight | 2.7 kg |
| Reference speed | 4300 rpm |
| Limit speed | 5960 rpm |
| Standard | iso 5753; iso 15312:2003; din 623 |
| Bore | cylindrical bore (d=85 mm) |
| Lubrication | w33: lubrication groove and oil holes in the outer ring (grease and oil lubrication) |
| Basic static load, radial - C0r | 302000 N |
| Basic dynamic load, radial - Cr | 286000 N |
Show UNSPSC/ECL@SS
£ 111.46 excl. VAT
/ Each
£ 133.75 incl. VAT
- Usually arrives within 14 working days
