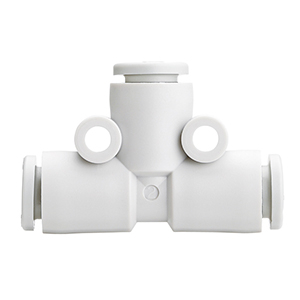

SMC KQ2T04-00A1 UNION TEE, TUBE-TUBE CONNECTION
Union Tee Fitting
See technical informationSee documentsReferences
SMC:KQ2T04-00A1
Rubix:387A4826
Manufacturer :KQ2T04-00A1
Technical specifications
| Connection 1 | 4 |
|---|---|
| Material | stainless steel 303 (body); pbt (some body/guide parts); ss304 (chuck/guide); pom (release button); nbr (o-ring/seals) |
Documents
Product details : SMC KQ2T04-00A1 UNION TEE, TUBE-TUBE CONNECTION
KQ2 one-touch, The specially designed packing provides positive sealing under pressure without the reduced flow common with compression fittings. The KQ2 release collar releases both the chuck and collet to provide a low disconnection force for easy removal of the tubing.
Strengths
•Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa
Technical specifications
Attributes
| Connection 1 | 4 |
|---|---|
| Material | stainless steel 303 (body); pbt (some body/guide parts); ss304 (chuck/guide); pom (release button); nbr (o-ring/seals) |
| Length | 31 mm |
| Min. temperature | -5 °C |
| Colour | silver |
| Connection 2 | 4 |
| Max. temperature | 60 °C |
| Service pressure | 10 bar |
| Type of fluid | air, water |
| Metric exterior tube diameter | 4 mm |
| Metric exterior tube diameter 2 | 4 mm |
Show UNSPSC/ECL@SS
£ 2.35 excl. VAT
/ Each
£ 2.82 incl. VAT
- Usually arrives within 14 working days
