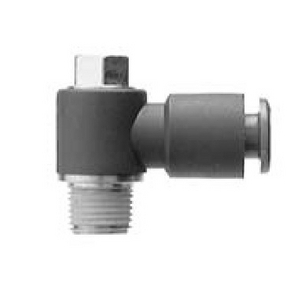

SMC KRV08-02S FLAME RESISTANT FITTING
Universal Male Elbow
References
smc:KRV08-02S
rubix:222A2707
manufacturer :KRV08-02S
Technical specifications
| Material | c3604bd;pbt |
|---|---|
| Connection 1 | 8 mm |
Product details : SMC KRV08-02S FLAME RESISTANT FITTING
Flame resistant, one-touch fitting series KR can be used for a wide range of pressures from a low vacuum up to a pressure of 145 PSI. The use of a special profile ensures positive sealing and reduced resistance when the tube is being inserted. KR fittings are effective when piping in a confined space. The body and threaded portion can turn
Strengths
•Effective when piping is in a confined space
Release collar allows easy removal of tubing without damaging the tube
Ideal for areas where weld splatter is generated
Flame resistant material
Maximum operating pressure of 1.0MPa
Release collar allows easy removal of tubing without damaging the tube
Ideal for areas where weld splatter is generated
Flame resistant material
Maximum operating pressure of 1.0MPa
Technical specifications
Attributes
| Material | c3604bd;pbt |
|---|---|
| Connection 1 | 8 mm |
| Profile | krv |
| Connection 2 | 1/4 in |
| Min. temperature | -5 °C |
| Max. temperature | 60 °C |
Show UNSPSC/ECL@SS
£ 8.07 excl. VAT
/ Each
£ 9.68 incl. VAT
Delivery usually within ( 24 ) days
