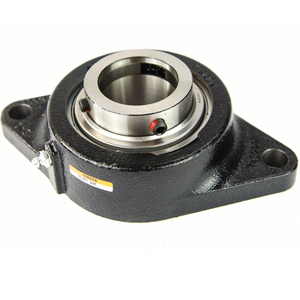

TIMKEN YCJT 20 TWO BOLT FLANGED BEARING UNIT

2-bolt flanged unit industrial series with GY-KRRB insert set-screw bearing

References

Timken:YCJT 20

Rubix:103A0599

EAN:0087796169654

Inner diameter	20 mm
Width	27.8 mm
Fixation centre-to-centre distance	89.7 mm

Fafnir inch flange bearing housing unit

Timken Fafnir YCJT 20 ball bearing unit with two-bolt flange for 20-mm shafts. Pre-greased, with Shroud Seal and factory lubrication.

Attributes

Inner diameter	20 mm
Width	27.8 mm
Fixation centre-to-centre distance	89.7 mm
Material	cast iron
Sealing	one rubber seal and one metal shield
Series	ycjt
Total bearing width	31.8 mm
Clamping	11.1 mm
Diameter of fixation holes	10 mm
Basic static load, radial - C0r	6500 N
Basic dynamic load, radial - Cr	14200 N
Weight	0.78 kg
Mounting typ	two-bolt flange

Show UNSPSC/ECL@SS

£ 83.15 ^{excl. VAT}

/ Each

£ 99.78 ^{incl. VAT}
