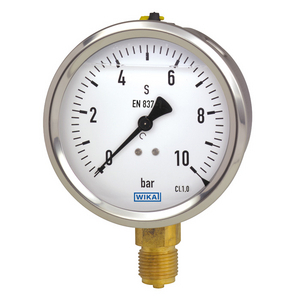

WIKA 0-10BAR PRESSURE GAU 9022210
213.53 Bourdon Tube Pressure Gauge
References
wika:9022210
rubix:161A1804
ean:4250738100824
Technical specifications
| Min. service pressure | 0 bar |
|---|---|
| Max. service pressure | 10 bar |
| Connecting diameter | g 1/4 bsp '' |
Product details : WIKA 0-10BAR PRESSURE GAU 9022210
The liquid-filled model 213.53 Bourdon tube pressure gauge
is constructed with a case from stainless steel and wetted
parts from copper alloy.
The model 213.53 meets the requirements of the international industry standard EN 837-1 for Bourdon tube pressure
gauges.
Due to the liquid filling in the case, the pressure element and
movement are efficiently damped. Therefore, these instruments are particularly suited to measuring points with high
dynamic loads, such as fast load cycles or vibrations.
Strengths
- Vibration and shock-resistant
- Especially robust design
- Type approval for the shipbuilding industry
- Especially robust design
- Type approval for the shipbuilding industry
Applications
- For measuring points with high dynamic pressure loads and vibrations
- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Hydraulics
- Compressors, shipbuilding
- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Hydraulics
- Compressors, shipbuilding
Technical specifications
Attributes
| Min. service pressure | 0 bar |
|---|---|
| Max. service pressure | 10 bar |
| Connecting diameter | g 1/4 bsp '' |
| Outer diameter | 63 mm |
Show UNSPSC/ECL@SS
£ 24.73 excl. VAT
/ Each
£ 29.68 incl. VAT
Usually arrives within 14 working days
