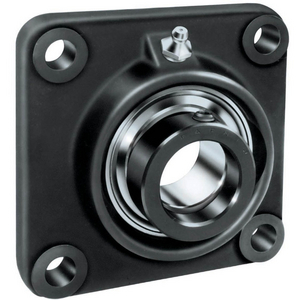

TIMKEN VCJ1 4-BOLT FLANGED UNIT

4-bolt flanged unit standard series with GRA-RRB insert ball bearing with locking collar

Timken:VCJ 1

Rubix:395A8933

EAN:0087796057586

Inner diameter	25.4 mm
Width	27.9 mm
Fixation centre-to-centre distance	69.85 mm

Product details : TIMKEN VCJ1 4-BOLT FLANGED UNIT

Inch flange bearing housing unit Fafnir

Timken Fafnir VCJ1 bearing unit with four-hole flange: 25.4 mm bore, 65.1 mm outside diameter and 95.2 mm length. Factory preassembled.

Attributes

Inner diameter	25.4 mm
Width	27.9 mm
Fixation centre-to-centre distance	69.85 mm
Material	cast iron
Sealing	one rubber seal and one metal shield
Series	vcj standardserie
Total bearing width	31 mm
Clamping	12.7 mm
Diameter of fixation holes	10 mm
Basic static load, radial - C0r	7800 N
Basic dynamic load, radial - Cr	15500 N
Weight	0.72 kg
Mounting typ	four-bolt square flange (four-hole)

Show UNSPSC/ECL@SS

£ 50.13 ^{excl. VAT}

/ Each

£ 60.16 ^{incl. VAT}
